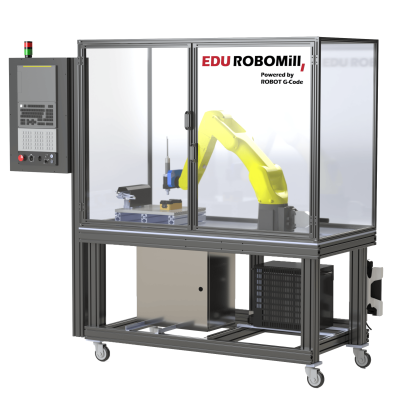

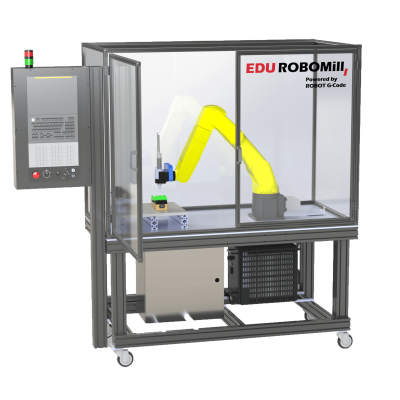

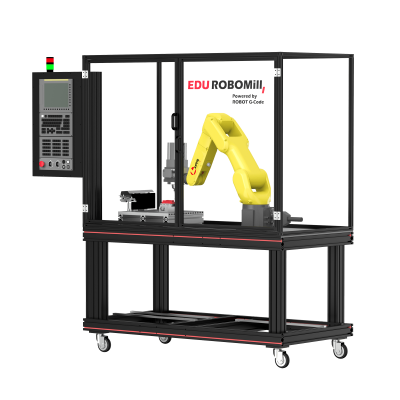

Where Robotics become CNC machines
Unlocking a new era of industrial automation through the fusion of robotic flexibility and CNC machining precision. A cutting-edge fusion of FANUC CNC and robotics, combining the best of both worlds.
Designed for education and real-world application, this system not only teaches robotics programming and the fundamentals of CNC but also serves as a versatile solution for industrial tasks.
Feature | Details |
Compatibility | Works on FANUC CNC and robots equipped with the right software options (Robot G-code option). |
Commands | Supports basic G-code for linear, circular movements (G0, G1, G2, G3) |

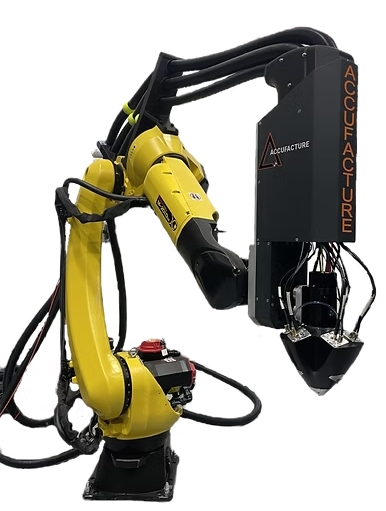

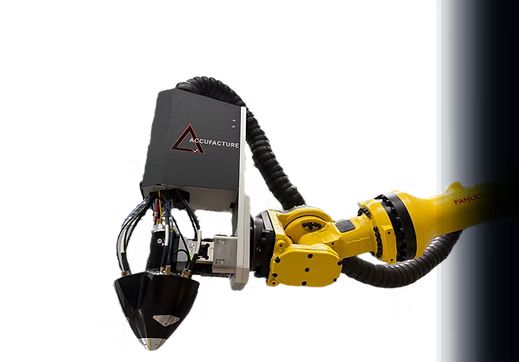

Applications | Robotic machining, 3D printing, CNC milling, additive manufacturing. |
Ease of Use | Allows CNC operators/machinists to program in the traditional G-code language they are accustomed to and control robots to move in the same way as a CNC machine would. |
Integration | Can work alongside traditional FANUC control systems like R-30iB Plus and newer models. |
Customization | Users can define robot-specific movements that correlate with machine-tool standard commands. |
You prepare G-code similar to what you would for a CNC mill (generated by a CAM program like Fusion 360, Mastercam, etc.)
The FANUC robot interprets the G-code through a Robot G-code interpreter software option.
X, Y, Z coordinates are translated into robotic movements — including arm positioning and spindle/tool interaction.
Additional motion commands, feed rates, and dwell times are handled automatically.
You can send G-code directly to the robot’s controller, or upload G-code files for the robot to execute.
Flexibility + Precision: Robotic reach with CNC accuracy.
Cost-Effective: Multi-axis machining without the massive CNC price tag.
Space-Saving: Compact footprint — workspace defined by robot size.
Easy Programming: CNC G-code control, no complex robot coding needed.
Industrial Ready: Machine, print, trim, finish — real-world production capability.
Multi-Use: Switch between machining, tending, and other robotic tasks.
Future-Proof: Modular and scalable for evolving manufacturing needs.
| Industrial Controller | Fanuc 0i-MF Plus | |
| Measurement System | Imperial | Metric |
| LR-Mate 200iD/4S |
| LR-Mate 200iD |
| LR-Mate 200iD/7L |
| LR-Mate 200iSD/14L |
| LR-10iA/10 |
| Axes Motors | Servo Motors | |
| Linear Guideways | N/A | |
| Ball Screws | N/A | |
| Precision | 0.0012 inches | 0.03 mm |
| Rapid Feed Rate | 79 ipm | 2.0 m/min |
| Cutting Feed Rate | 59 ipm | 1.50 m/min |
| Spindle | Spindle Option 1 (For all robots): | Spindle Option 2 (For robots with 10KG payload or larger): |
| Standard Model | NSK 3060-AQC ATC | LS-C30 |
| Max. Spindle Speed | 30,000 rpm | 14,000 rpm |
| Spindle Motor Power | 0.47 hp | 2 hp |
| Spindle Taper | QC3 | S20T |
| Rigid Tapping Capable | NO | NO |
| Automatic Tool Changer | Yes | Yes |
| Max Torque | ~0.11 Nm | 2.5 Nm |
| Drive System | Inline Direct Drive | Inline Direct Drive |
| Cooling | Air Cooled | Air Cooled |
| Width | 83.6 inches | 212.5 cm |
| Height | 74.77 inches | 1900 cm |
| Depth | 32.9 inches | 0.60 m |
| Height with Stand | 74.77 inches | 1900 cm |
| Fits Through Standard Door (35″) | Yes | |
| Machine Weight | coming soon | |
| Length | 16.73 inches | 425 mm |
| Width | 14.76 inches | 250 mm |
| T-slot Width | 0.3346 inches | 8.5 mm |
| T-Slot Center Distance | 0.9842 inches | 25 mm |
| Number of std T-Slots | 15 | |
| Type | Position table | |
| Capacity | 5/15 | |
| Max Tool Diameter | 1 inches | 25.4 mm |
| Vise | 3″ vise | |
| Chuck | 3 Jaw Chuck 4″ | |
| Pneumatic vise | Compact vise | |
| 5C Collect | N/A | |
| Standard Shipping Crate – Dimensions | Coming Soon | |
| Deluxe Shipping Crate – Dimensions | Coming Soon | |
| Standard Shipping Crate – Weight | Coming Soon | |
| Deluxe Shipping Crate – Weight | Coming Soon | |
| Power | 220 VAC (Stepper up/down trandformer for 110 VAC) | |
| Amps | 15 A | |
| Phase | 1 ph | |
The workspace is limited only by the reach and size of the selected robot. While the cell dimensions listed in the specifications represent our standard educational configuration, we offer full customization options. Whether you need a compact setup or an expanded working area, we can tailor the cell size to match the specific requirements of your robot and application needs.
