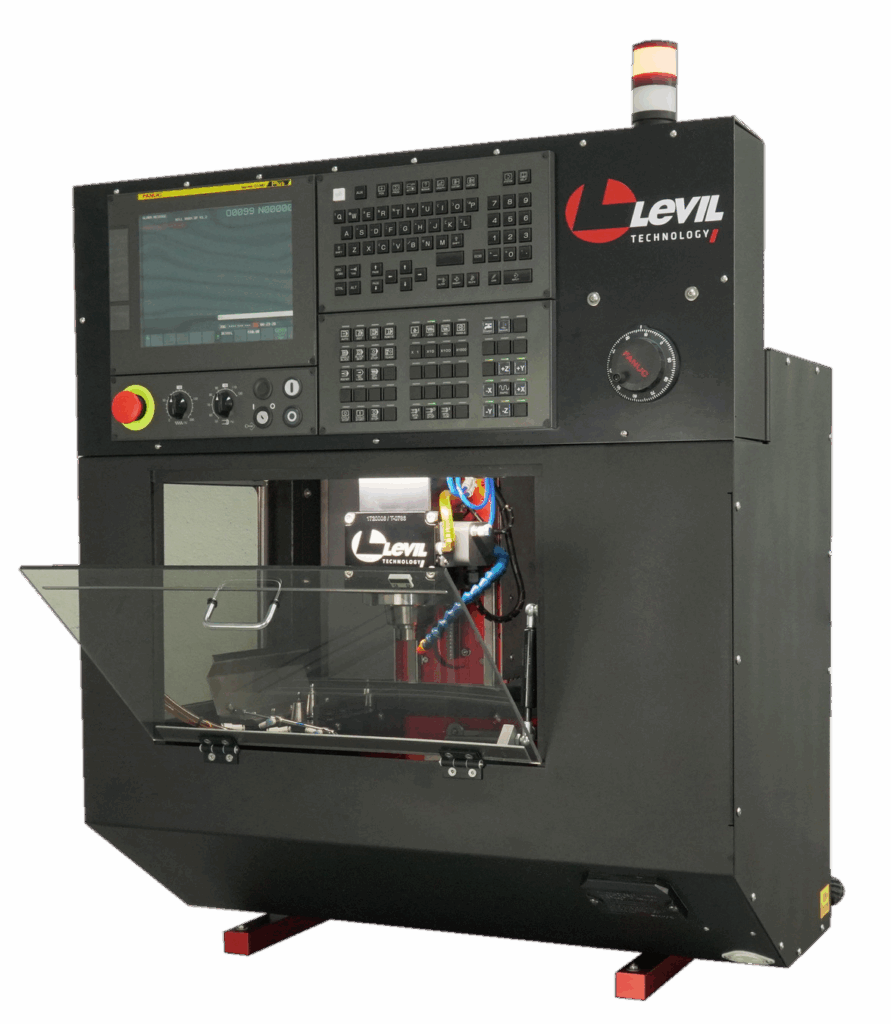

Streamlined Efficiency Meets Advanced Machining with the LMV-400
The LMV-400 is a compact and powerful CNC milling machine designed for high-precision 3-axis machining. It can be upgraded to a 4th axis for added versatility. The rigid aluminum frame ensures stability and accuracy, making it ideal for small shops, educational settings, and industrial applications.
The LMV-400 features servo motors, precision ball screws, and a high-speed spindle, up to 100,000 RPM, allowing it to handle a wide range of materials with ease. With an automatic tool changer and user-friendly CNC controller, the LMV-400 boosts productivity and reduces setup time, providing exceptional performance in a small footprint.
| Industrial Controller | Fanuc 0i-MF plus or Levil LV-12 MC | |
| Measurement System | Imperial | Metric |
| Travel X Axis | 16.5 inches | 421 mm |
| Travel Y Axis | 8.5 inches | 217 mm |
| Travel Z Axis | 7.5 inches | 190 mm |
| Travel A Axis | +/- 360 degrees | |
| Axes Motors | Servo Motors | |
| Linear Guideways | Size 15 | |
| Ball Screws | C7 Grade Rolled | |
| Precision | 0.0004 | 0.01 mm |
| Rapid Feed Rate | 400 ipm | 10 mm/min |
| Cutting Feed Rate | 250 ipm | 63.5 mm/min |
| Standard Model | LS-C30 | |
| Max. Spindle Speed | 14,000 rpm | |
| Spindle Motor Power | 2 hp | |
| Spindle Taper | S20T | |
| Rigid Tapping Capable | Yes | |
| Automatic Tool Changer | Yes | |
| Max Torque | 2.5 Nm | |
| Drive System | Inline Direct Drive | |
| Cooling | Liquid Cooled – Air Cooled | |
| Width | 33 inches | 0.84 m |
| Height | 43.69 inches | 1.11 m |
| Depth | 37 inches | 0.94 m |
| Height with Stand | 68 inches | 1.72 m |
| Fits Through Standard Door (35″) | Yes | |
| Machine Weight | Aprox 475 lbs. (215 kg) | |
| Length | 16.8 inches | 427 mm |
| Width | 9.84 inches | 250 mm |
| T-slot Width | 0.3346 inches | 8.5 mm |
| T-Slot Center Distance | 0.9842 inches | 25 mm |
| Number of std T-Slots | 10 | |
| Type | Position Table | |
| Capacity | 11 tools | |
| Max Tool Diameter | 1.1″ (28 mm) | |
| Air required | Yes | |
| Coupler (Air) | Size 1/4″ quick disconnect | |
| Air Pressure Min | 90 psi | |
| Vise | 3″ vise | |
| Chuck | Optional 3 Jaw Chuck 4″ | |
| Pneumatic vise | Compact vise | |
| Standard Shipping Crate – Dimensions | 48x48x53 inches | 1.21×1.21×1.34 m |
| Deluxe Shipping Crate – Dimensions | 40x40x82 | 1x1x2 m |
| Standard Shipping Crate – Weight | 588 Lbs. | |
| Deluxe Shipping Crate – Weight | 672 Lbs. | |
| Power | 220 VAC (Stepper up/down trandformer for 110 VAC) |
|
| Amps | 15 A | |
| Phase | 1 ph | |
| CRX5 Capable | Yes | |
| LR-Mate 200iD ES | Yes | |
Shaping the Engineers of Tomorrow
The LMV-400 is a compact yet powerful CNC milling machine designed to provide students with hands-on experience in modern machining and manufacturing. Its robust construction and advanced features make it the perfect tool for preparing the next generation of engineers and machinists.
Key Features:
Automate Your LMV-400 with the FANUC CRX-5iA or FANUC LR-Mate 400iD
The FANUC CRX-5iA and LR-Mate 400iD are advanced robotic solutions that can be seamlessly integrated with the LMV-400, bringing automation and flexibility to your machining operations and hands-on experience in advanced manufacturing in the classroom by integrating CNC machining with industry-leading robotics.
Key Features:
Students gain hands-on experience with CNC machining and robotics, learning industry-relevant skills that prepare them for modern manufacturing challenges.
Automating repetitive or time-consuming tasks like part loading/unloading improves the efficiency and throughput of the LMV-400.
Both robots simulate modern manufacturing practices, bridging the gap between education and industrial use, enhancing students' employability and professionals' skills.
The robots' versatility allows easy reconfiguration for different projects and processes, supporting a wide range of educational and industrial applications.
Automation of hazardous or repetitive tasks enhances safety in both classroom and industrial settings by reducing human involvement in risky operations.
The CRX-5iA and LR-Mate 400iD offer accessible entry points to robotic automation, making it easy to bring advanced manufacturing technologies into your LMV-400 setup.
Check it out!
