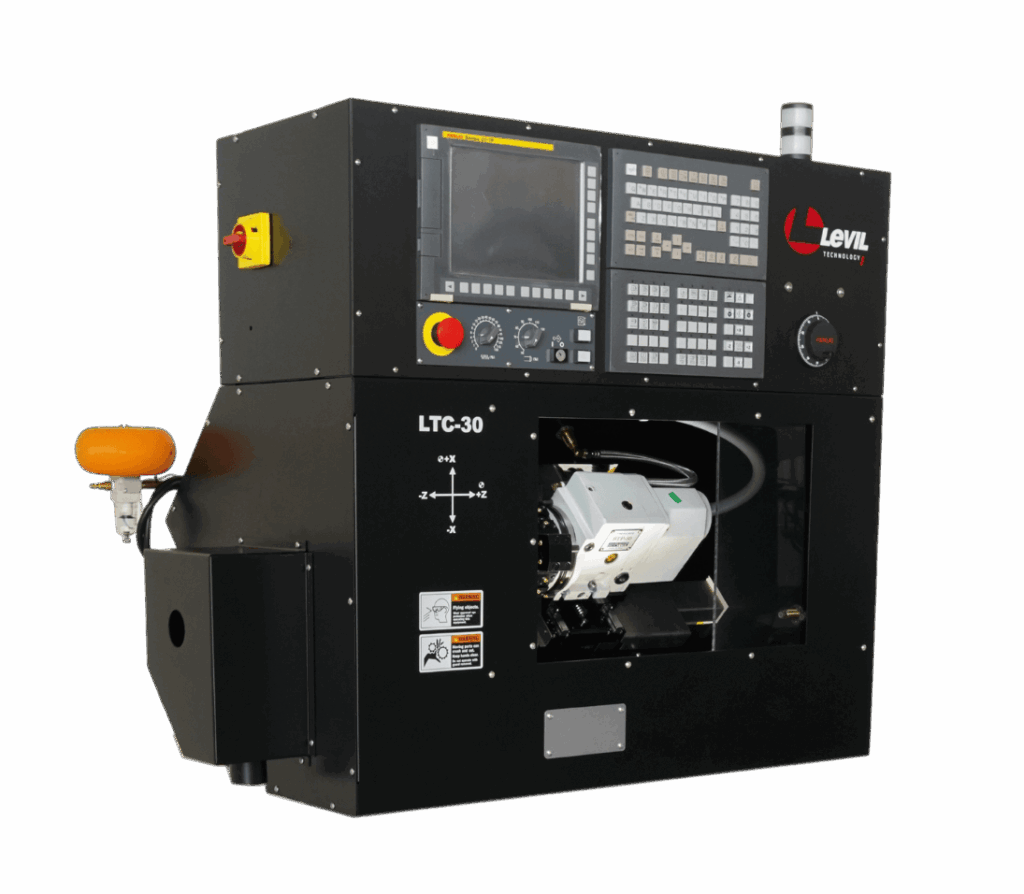

COMPACT CNC TURNING CENTER
The LTC-30 is a compact yet powerful CNC turning machine perfect for any instructor looking to provide students with a capable teaching tool within a small classroom.
Industrial Controller | MGI (Standard) or Levil LV-12 MC |
Measurement System | Imperial | Metric |
Travel X Axis | 6.5 inches | 170 mm |
Travel Z Axis | 8.85 inches | 225 mm |
Tailstock Available | Yes |
Axes Motors | Servo Motors | |
Linear Guideways | Size 15 | |
Ball Screws | C7 Grade Rolled |
Rapid Feed Rate | 600 ipm | 15000 mm/min |
Cutting Feed Rate | 118 ipm | 3000 mm/min |
Standard Model | LS-60 | |
Max. Spindle Speed | 3,000 rpm | |
Spindle Motor Power | 2 hp | |
Rigid Tapping Capable | Yes | |
Automatic Tool Changer | Yes | |
Max Torque | 10.25 Nm | |
Drive System | Inline Direct Drive | |
Cooling | Air Cooled |

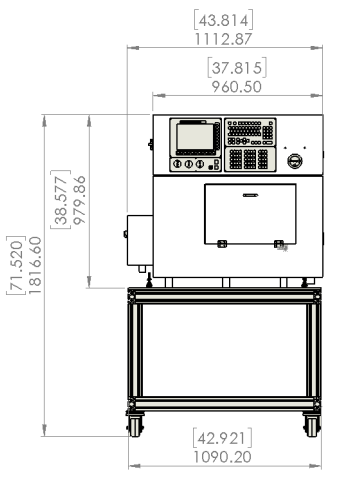

Width | 44 inches | 1.12 m |
Height | 42.38 inches | 1.08 m |

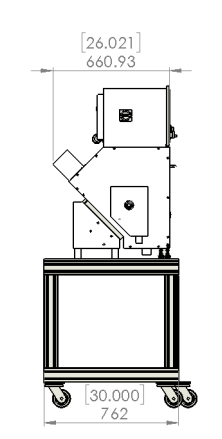

Depth | 30 inches | 0.76 m |
Height with Stand | 66.5 inches | 1.69 m |
Fits Through Standard Door (35″) | Yes | |
Machine Weight | 650 Ibs (300 kg) |
Flood Coolant | Yes | |
Gallons | 10 gallons | |
Power | 1/8 hp pump | |
rpm | 1500 rpm | |
Adjustable flow Valve | No | |
M-code Controlled | Yes | |
Optional Air Blast Available | Yes | |
Optional Mist Coolant Available | Yes |
Type | Tool Turret | |
Capacity | 8 tools | |
Max Tool Diameter | 0.75 inches | 19.05 mm |
Air required | Yes | |
Coupler (Air) | Size 1/4″ quick disconnect | |
Air Pressure Min | 90 psi |
Chuck | 3 Jaw Chuck 4″ | |
5C Collet | Available |
Standard Shipping Crate – Dimensions | 48x48x49 inches | 1.21 x 1.21 x 1.24 m |
Deluxe Shipping Crate – Dimensions | 37x48x82 inches | 0.93 x 1.21 x 2 m |
Standard Shipping Crate – Weight | 783 Lbs. | |
Deluxe Shipping Crate – Weight | 1192 Lbs. |
Power | 220 VAC (Stepper up/down trandformer for 110 VAC) | |
Amps | 20 A | |
Phase | 1 ph |
CRX5 Capable | Yes | |
LR-Mate 200iD ES | Yes |
