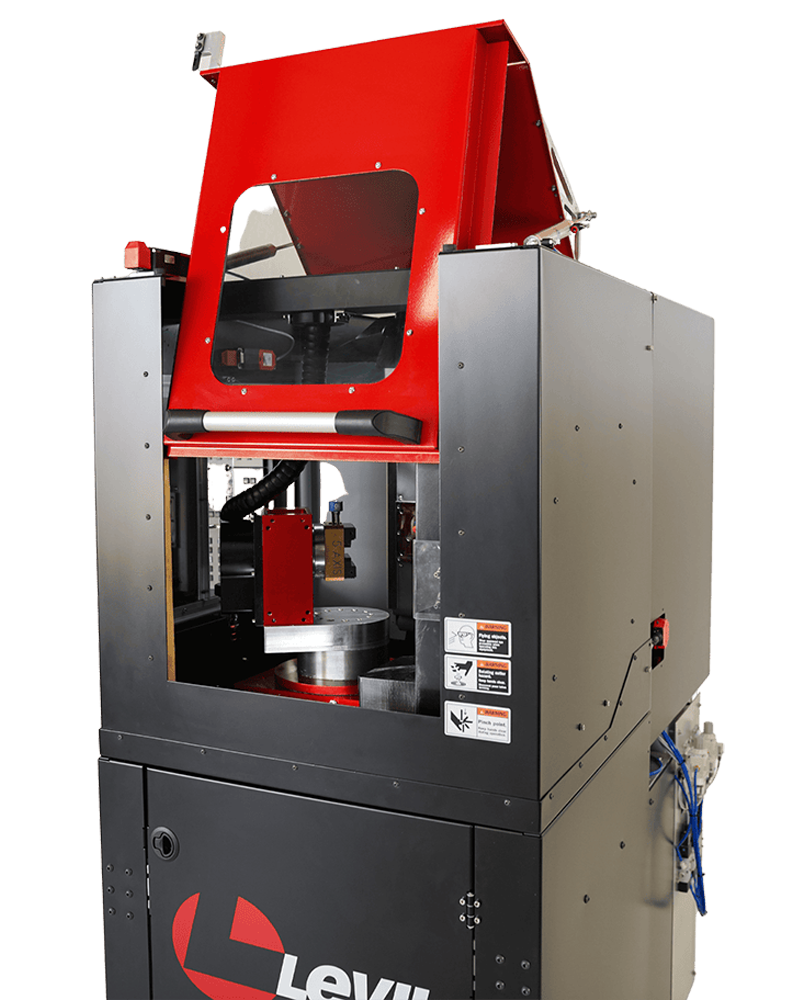

LMH-300 4X: Precision Redefined in Advanced 4-Axis Milling
The LMH-300 4X is a high-performance 4-axis horizontal CNC mill engineered for precision and versatility in complex part production. With a robust horizontal spindle and precision rotary axes, it enables intricate multi-axis operations while maintaining a compact, space-efficient design.
Equipped with advanced servo motors and ball screws, the LMH-300 4X ensures exceptional accuracy and repeatability across a range of materials. Its intuitive CNC controller simplifies programming and setup, making it ideal for both prototyping and production environments where precision and efficiency are critical.
| Industrial Controller | Fanuc 0i-MF plus, FANUC CNC Series or Levil LV-12 MC | |
| Conversational Programming | MGI (Standard) | |
| Measurement System | Imperial | Metric |
| Travel X Axis | 15.3 inches | 390 mm |
| Travel Y Axis | 6.5 inches | 170 mm |
| Travel Z Axis | 9.4 inches | 240 mm |
| Travel C Axis | +/- 360 degrees | |
| Axes Motors | Servo motors | |
| Linear Guideways | Size 15 | |
| Ball Screws | C5 Grade Precision Ground | |
| Precision | 0.0004 inches | 0.01 mm |
| Rapid Feed Rate | 600 ipm | 150 mm/min |
| Cutting Feed Rate | 250 ipm | 63.5 mm/min |
| Standard Model | LS-F30H | |
| Max. Spindle Speed | 20,000 rpm | |
| Spindle Motor Power | 2 hp | |
| Spindle Taper | S20T | |
| Rigid Tapping Capable | yes | |
| Automatic Tool Changer | Yes | |
| Max Torque | 2.29 Nm | |
| Drive System | Inline Direct Drive | |
| Cooling | Liquid Cooled – Air Cooled | |
| Width | 58 inches | 1.47 m |
| Height | 75 inches | 1.83 m |
| Depth | 57.7 inches | 1.465 m |
| Height with Stand | 75 inches | 1.83 m |
| Fits Through Standard Door (35″) | No | |
| Machine Weight | Aprox 1000 lbs. (453 kg) | |
| Flood Coolant | Yes | |
| Gallons | 15 gallons | |
| Power | 1/4 hp pump | |
| rpm | 2800 rpm | |
| Adjustable flow Valve | Yes | |
| M-code Controlled | Yes | |
| Optional Air Blast Available | Yes | |
| Optional Mist Coolant Available | Yes | |
| Type | Carousel | |
| Capacity | 27 tools | |
| Max Tool Diameter | 1.1″ (28 mm) | |
| Air required | Yes | |
| Coupler (Air) | Size 1/4″ quick disconnect | |
| Air Pressure Min | 90 psi | |
| Vise | 3″ vise | |
| Chuck | Optional 3 Jaw Chuck 4″ | |
| Pneumatic vise | Compact vise | |
| Vise | Compact vise | |
| Chuck | 4 Jaw Chuck 4″ | |
| Pneumatic vise | Compact vise | |
| Deluxe Shipping Crate – Dimensions | 48 x 80 x 86 inches | 1.21 x 2 x 2.1 m |
| Deluxe Shipping Crate – Weight | 1930 lbs. | |
| Power | 220 VAC | |
| Amps | 30 A | |
| Phase | 3 ph | |
| CRX5 Capable | Yes | |
| LR-Mate 200iD ES | Yes | |
Inspiring the Innovators of the Future
The LMH-300 is a compact yet powerful CNC milling machine designed to provide students with hands-on experience in modern machining and manufacturing. Its robust construction and advanced features make it the perfect tool for inspiring and preparing the next generation of innovators.
Key Features:
Automate Your LMH-300 with the FANUC CRX-5iA or FANUC LR-Mate 400iD
The FANUC CRX-5iA and LR-Mate 400iD are advanced robotic solutions that can be seamlessly integrated with the LMH-300, bringing automation and flexibility to your machining operations and hands-on experience in advanced manufacturing in the classroom by integrating CNC machining with industry-leading robotics.
Key Features:
Students gain hands-on experience with CNC machining and robotics, learning industry-relevant skills that prepare them for modern manufacturing challenges.
Automating repetitive or time-consuming tasks like part loading/unloading improves the efficiency and throughput of the LMH-300.
Both robots simulate modern manufacturing practices, bridging the gap between education and industrial use, enhancing students' employability and professionals' skills.
The robots' versatility allows easy reconfiguration for different projects and processes, supporting a wide range of educational and industrial applications.
Automation of hazardous or repetitive tasks enhances safety in both classroom and industrial settings by reducing human involvement in risky operations.
The CRX-5iA and LR-Mate 400iD offer accessible entry points to robotic automation, making it easy to bring advanced manufacturing technologies into your LMH-300 setup.
Check it out!
