Compact Precision for Education and Small Part Production
The most space-efficient CNC machine, designed for educational settings, intricate engraving, and high-precision small part manufacturing.

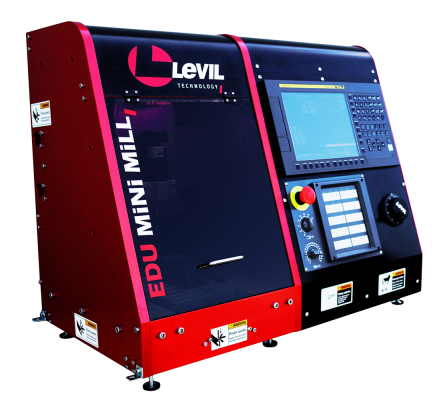

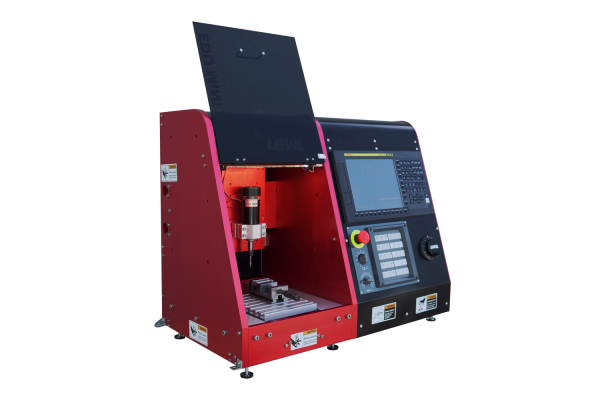

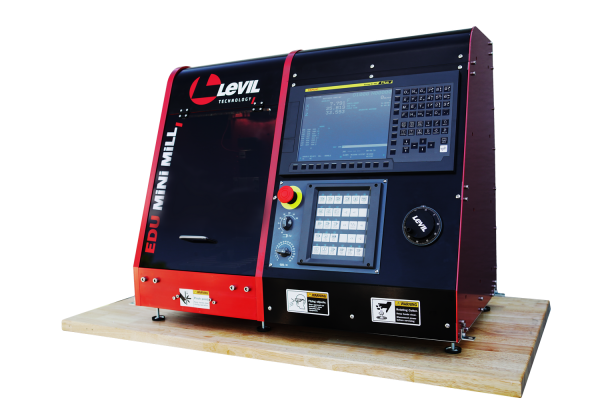

Introducing our newest machine – The Edu Mini Mill features our proprietary control and industry-standard control like FANUC. It can cut light materials and engrave metals, making it perfect for makers, students, and educators.
| Industrial Controller | Fanuc 0i-MF Plus or Levil LV-12 MC | |
| Measurement System | Imperial | Metric |
| Travel X Axis | 7 inches | 178 mm |
| Travel Y Axis | 7.75 inches | 200 mm |
| Travel Z Axis | 5 inches | 127 mm |
| Axes Motors | Servo Motors | |
| Linear Guideways | Size 15 | |
| Ball Screws | C7 Grade Rolled | |
| Precision | 0.0004 inches | 0.01 mm |
| Rapid Feed Rate | 400 ipm | 10000 mm/min |
| Cutting Feed Rate | 150 ipm | 3800 mm/min |
| Standard Model | 500W | |
| Max. Spindle Speed | 12,000 rpm | |
| Spindle Motor Power | 0.5 hp | |
| Spindle Taper | ER-11 | |
| Rigid Tapping Capable | No | |
| Automatic Tool Changer | No | |
| Max Torque | 0.5 Nm | |
| Drive System | Inline Direct Drive | |
| Cooling | Air Cooled | |
| Width | 32.5 inches | 0.825 m |
| Height | 26.5 inches | 0.67 m |
| Depth | 23.5 | 0.60 m |
| Fits Through Standard Door (35″) | Yes | |
| Machine Weight | coming soon | |
| Length | 7.28 inches | 185 mm |
| Width | 14.76 inches | 250 mm |
| T-slot Width | 0.3346 inches | 8.5 mm |
| T-Slot Center Distance | 0.9842 inches | 25 mm |
| Number of std T-Slots | 8 | |
| Max Tool Diameter | .25 inches | 6.35 mm |
| Vise | Compact vise | |
| Standard Shipping Crate – Dimensions | Coming Soon | |
| Deluxe Shipping Crate – Dimensions | Coming Soon | |
| Standard Shipping Crate – Weight | Coming Soon | |
| Deluxe Shipping Crate – Weight | Coming Soon | |
| Power | 220 VAC (Stepper up/down trandformer for 110 VAC) | |
| Amps | 15 A | |
| Phase | 1 ph | |
LEVIL AND EDUCATION
EDU Mini Mill: Shaping the Engineers of Tomorrow.

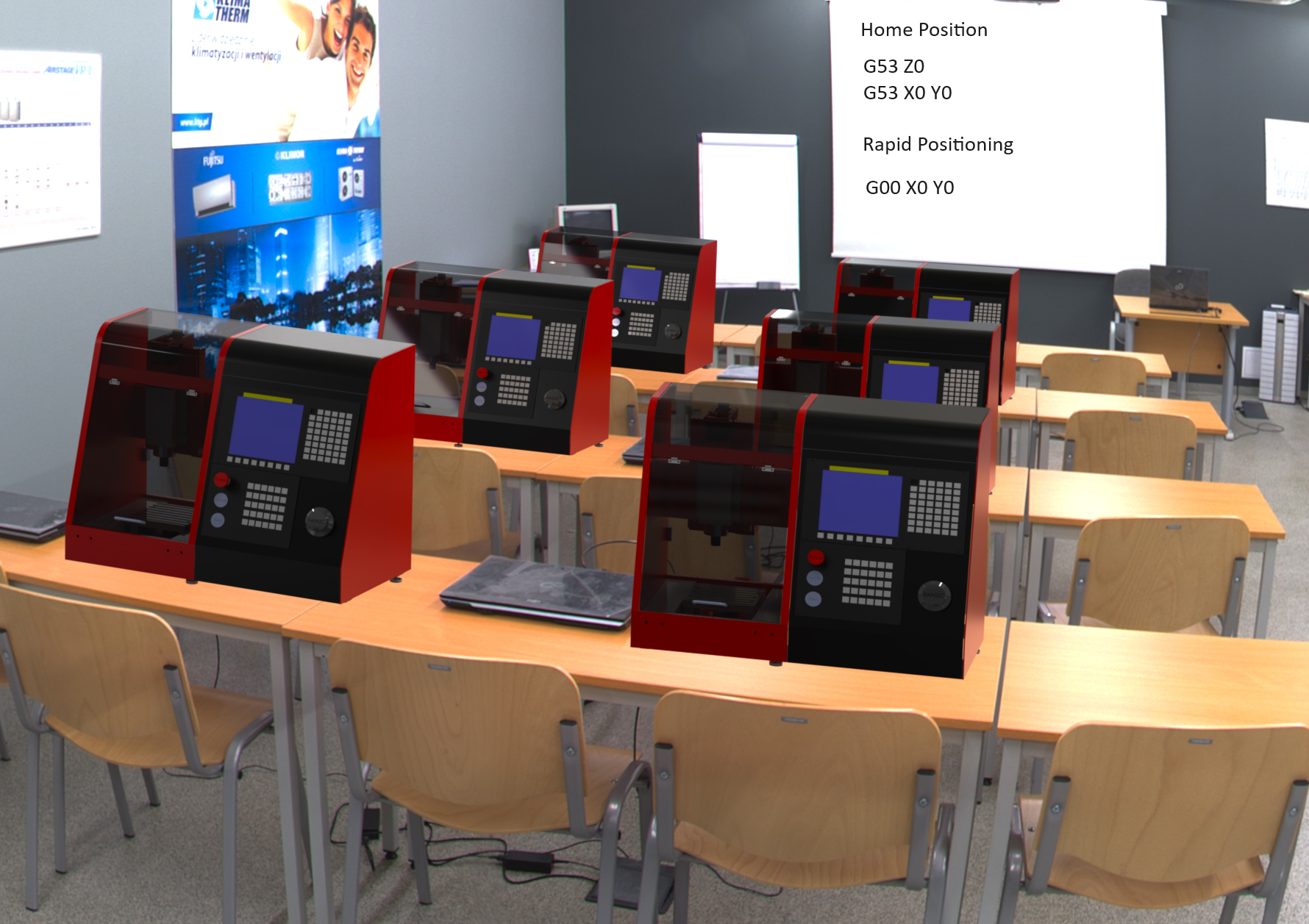

The EDU MiNi MiLL is a compact yet robust CNC milling machine crafted specifically for educational environments. It offers students practical experience in modern machining and manufacturing, equipping them with the skills needed to excel in the industry.
Key Features:
